Motor & Powertrain
Rear hub motor: 750 W continuous, peaks to ~1,100 W; 75 Nm torque Electric Bike Factory LLC+3Tampa Bay eBikes+3New Atlas+3
Drivetrain: Shimano 7-speed drivetrain and 52T chainring Electric Bike Explorer+5Electric Bike Factory LLC+5bicycleone.com+5
Battery & Range
Battery: 48 V, 13 Ah (624 Wh), using UL‑certified 18650 cells; removable and IPX‑7 rated Lakes E Bikes+6Electric Bike Factory LLC+6bicycleone.com+6
Range: Up to 68 mi with pedal assist; ~45 mi on throttle-only Reddit+12Electric Bike Factory LLC+12Tom's Guide+12
Speed & Assist Modes
Top Speed: Adjustable (Class 1/2/3) — default 20 mph, up to 28 mph Velotric+9Tampa Bay eBikes+9bicycleone.com+9
Pedal Assist: SensorSwap™ allows switching between torque and cadence sensors; 3 modes × 5 PAS levels Reddit+15Tampa Bay eBikes+15bicycleone.com+15
Walk/Throttle Mode: Removable thumb throttle; walk mode at ~2.9 mph Exalted E-bikes
Frame & Folding
Frame: Step-through aluminum, supports riders 4′9″–6′5″ Reddit+9Electric Bike Factory LLC+9eBike Super Shop+9
Folded Size: 37.8 × 19.7 × 33.5 in (40% smaller footprint) New Atlas+5Tampa Bay eBikes+5bicycleone.com+5
Weight: 63 lb Reddit+8Electric Bike Factory LLC+8bicycleone.com+8

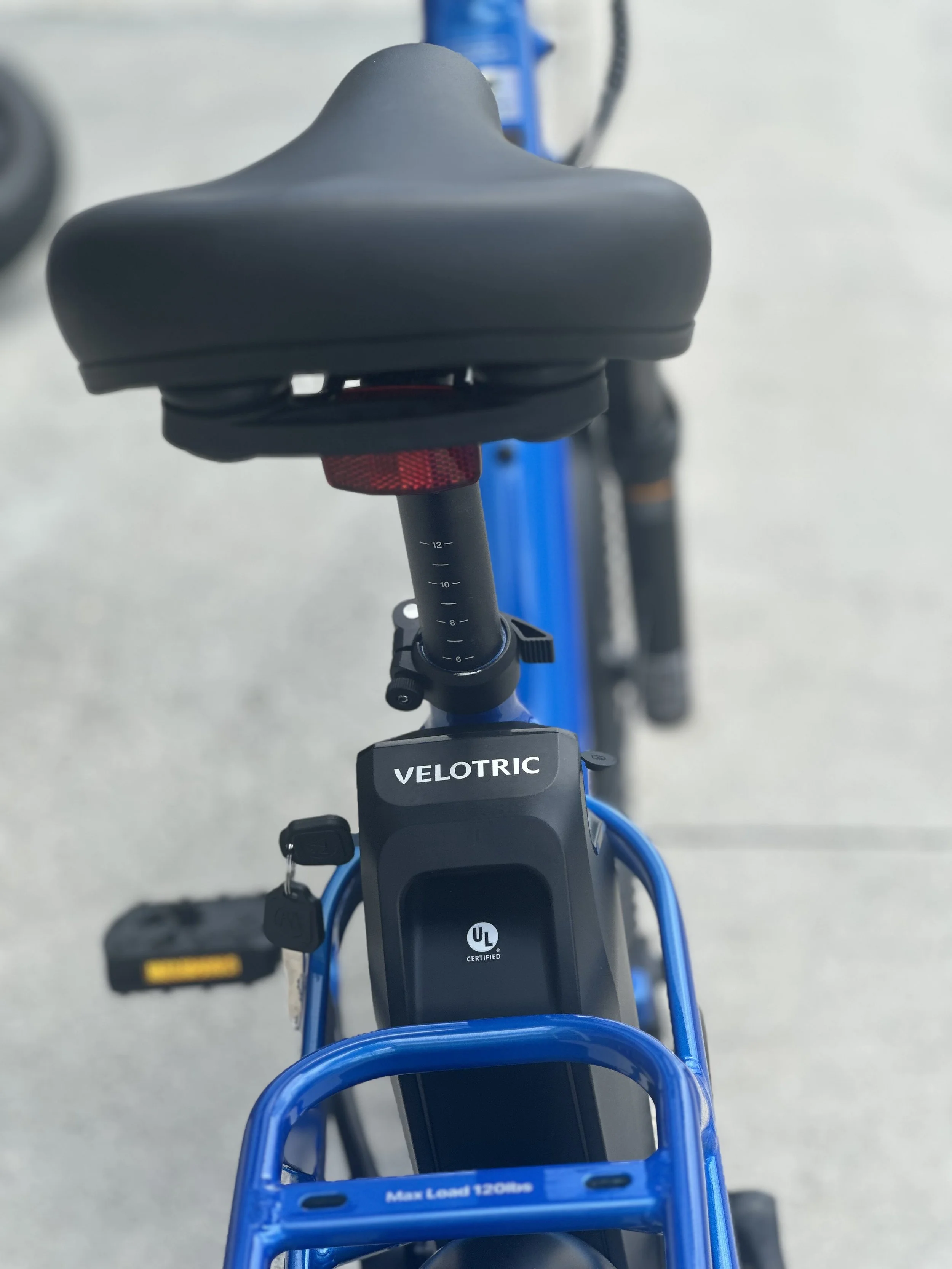

Max Payload: 450 lb total; rear rack rated to 120 lb Lakes E Bikes+7Electric Bike Factory LLC+7Electric Bike Explorer+7
Wheels, Suspension & Brakes
Tires: 20″×3.0″ puncture‑resistant fat tires www.ebikesocala.com+7Electric Bike Factory LLC+7Electric Bike Explorer+7
Suspension: 60 mm hydraulic fork with lockout Reddit+11Electric Bike Factory LLC+11bicycleone.com+11
Brakes: Hydraulic disc brakes, 180 mm rotors; power‑cutoff levers Lakes E Bikes+4New Atlas+4eBike Super Shop+4
Lighting & Safety
Front Light: 130 Lux integrated LED; adjustable angle Tampa Bay eBikes+8Electric Bike Factory LLC+8www.ebikesocala.com+8
Rear Light: Brake highlight + turn signals Bicycles Of Tulsa+6Electric Bike Factory LLC+6www.ebikesocala.com+6
Waterproofing: Frame IPX‑6, battery IPX‑7 Exalted E-bikes+5Tampa Bay eBikes+5New Atlas+5
Certifications: UL 2271 & UL 2849; ISO 4210 Electric Bike Explorer+6Electric Bike Factory LLC+6Lakes E Bikes+6
Security: Apple Find My™ built‑in; Bluetooth app connectivity (firmware updates & settings) Reddit+9Tampa Bay eBikes+9eBike Super Shop+9
Display & Connectivity
Display: 3.5″ full-color, high-brightness screen with Bluetooth and adjustable angle New Atlas+6Tampa Bay eBikes+6Bicycles Of Tulsa+6
Features: USB‑C charging port, cruise control, auto-light, customizable speed limits, auto shutoff
